JBeam
JBeam is a Java 6 application for introductory level two-dimensional static
and dynamic structural analysis. It supports arbitrary hinged Euler-Bernoulli
and Thimoshenko beams and truss elements.
Features
- object oriented graphical user interface

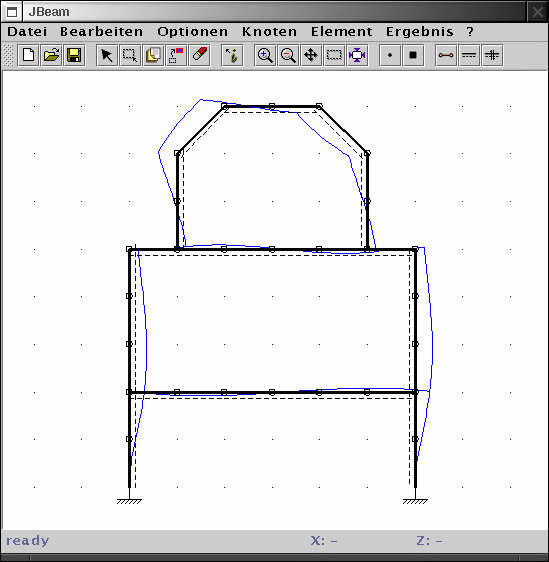

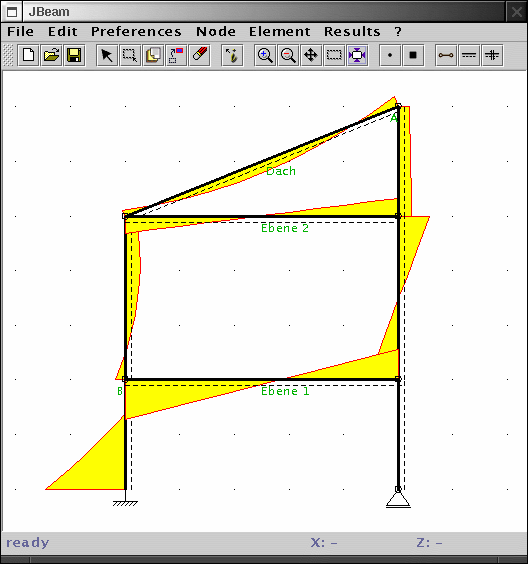

- static and modal analysis of plane frame structures
- customizeable view and snap grid
- beam and truss elements, optional modelling of shear deformation
- arbitrary hinged elements
- nodal loads
- linear distributed loads
- numerical output to ASCII or HTML file
- implemented on Java 6 platform, JDK/JRE 1.6 and higher supported
- runs as application or applet
